| NET YIELD OF GLYCOLYSIS: MAKE SURE YOU LEARN | ||||||||
| 2 ATP | ||||||||
| 2 H2O | ||||||||
| 2 Pyruvate | ||||||||
| 2 NADH+ H+ (which are shuttled to ETC via FADH2) | ||||||||

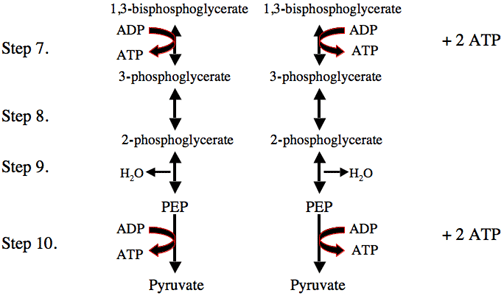

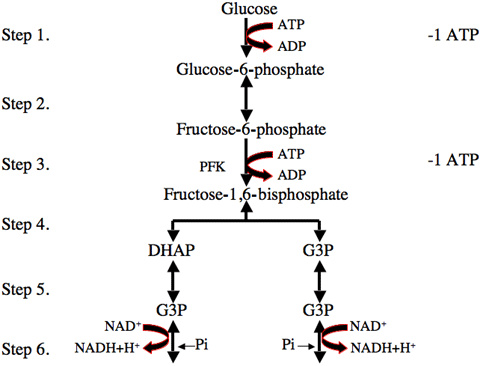

| NOTE TO STUDENTS: PLEASE LEARN GLYCOLYSIS IN THIS LINEAR DRAWING METHOD. LABEL YOUR STEPS AND SHOW YOUR ATP YIELD AS DEPICTED ABOVE. THIS WILL HELP AS WE REVISIT TO DISCUSS OTHER REACTIONS. | ||||||||
 | ||||||||
| ||||||||

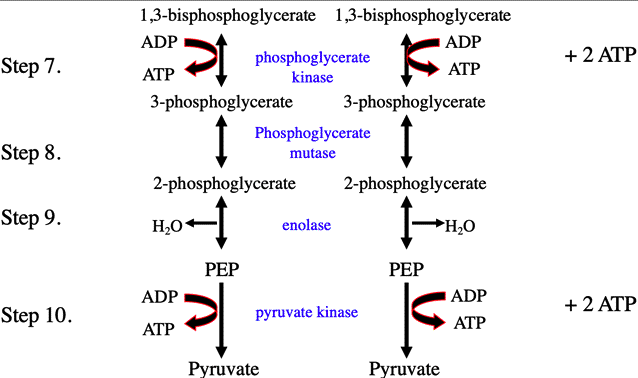

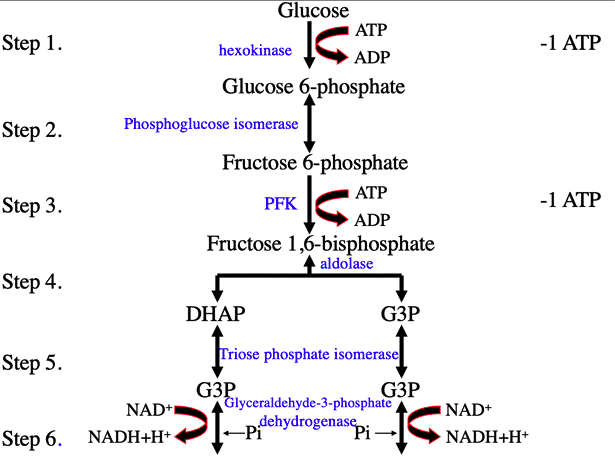

| GLYCOLYSIS SHOWN WITH ENZYMES FOR STUDENTS WISHING TO LEARN ENZYMES TOO! | ||||||||
 | ||||||||
 | ||||||||
| ||||||||
|
